RJ45 Plugs for Category 6A Applications
Unshielded - 111-080800B5LA4, 111-080800D1LA4 or 111-0808080095LA4
Shielded - 111S080800C7LA4, 111S080800D4LA4, 111S08080095HA4, 111S08080095LA4, 111S08080090H34 or 111S08080091H34
Product Features
* Incorporates a SINGLE or DUAL PATENTED CONDUCTIVE NEXT Reduction System. In addition to providing PRECISE CONDUCTOR ALIGNMENT, the Composite Carbon/Graphite Fiber Conductor Load Bar GREATLY REDUCES NEXT and RETURN LOSS by ABSORBING REFLECTIONS and CHANNELING IT AWAY FROM THE CONDUCTORS. Using recommended termination procedures and equipment, ANSI/TIA-568.2-d Category 6A performance levels are achievable with good workmanship and certified cables.
* Two or Three piece design provides proper conductor feedthrough and precise alignment to insure consistent terminations and electrical performance measurements.
* The conductors are isolated by the Conductor Load Bars and through Plastic Isolation/Insulation Barriers at the front of the plug.
* Made in USA
Performance: Meets or Exceeds ANSI/TIA 568-2.D - ANSI/TIA 1096 (Formerly FCC Part 68) - ANSI/TIA 968-A - CENELEC EN 50173 - IEC 60603 - ISO-8877 - ISO/IEC 11801
Contact Material: Phosphor Bronze - .012" thick
Contact Plating: Minimum 50 Micro-Inch Pure Gold - Selective 24 Carat Hard Gold Plate in contact area over 100 Micro-Inch minimum Nickel Plate. Exceeds TIA-1096 specifications (formerly FCC Part 68)
Plug Material: Polycarbonate
Plug Tolerances and Dimensions: Meets TIA-1096 specifications (formerly FCC Part 68)
UL Recognized: UL File #E188111 - UL 1863 (1000v)
Flame Autoextinguish: 94V-0
Operating Temperature: -40º C to +85º C
Insertion/Extraction Life: 1000 Minimum Cycles
Contact Resistance: 10 Milli-Ohms maximum
Current/Voltage: 30 VAC/57 VDC at 1.5 Amps
Compliance: RoHS Compliant
PoE: Meets requirements of 15W PoE (IEEE 802.3af), 30W PoE+ (IEEE 802.3at), 60W PoE++ (IEEE 802.3bt Type 3) and 100W PoE++ (IEEE 802.3bt Type 4)

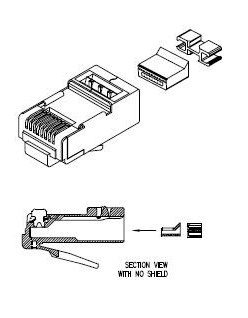

UNSHIELDED PLUGS | ||
---|---|---|
![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() | CATEGORY 6A UNSHIELDED PLUG For 28AWG STRANDED CONDUCTORS ONLY Accepts Conductor OD from .024"-.028" Maximum Jacket OD of .155" |
Click in Box for PayPal Drop Down Menu
1-99 - $0.95
100-999 - $0.85
1000 - $0.35
Can't Use PayPal?....email order
![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() |
![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() | CATEGORY 6A UNSHIELDED PLUG For 28AWG STRANDED CONDUCTORS ONLY Accepts Conductor OD from .024"-.028" Maximum Jacket OD of .155" |
Click in Box for PayPal Drop Down Menu
1-99 - $0.95
100-999 - $0.85
1000 - $0.35
Can't Use PayPal?....email order
![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() |
![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() | CATEGORY 6A UNSHIELDED PLUG For 23AWG and 24AWG Solid or Stranded Conductors Accepts Conductor OD from .037"-.042" Maximum Jacket OD of .260". Direct replacement for Ideal 85-366 |
Click in Box for PayPal Drop Down Menu
1-99 - $0.95
100-999 - $0.85
1000 - $0.35
Can't Use PayPal?....email order
![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() |
SHIELDED PLUGS | ||
---|---|---|
![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() | CATEGORY 6A SHIELDED PLUG For Stranded Conductors ONLY Accepts Conductor OD from .037"-.040" Maximum Jacket OD of .260" |
Click in Box for PayPal Drop Down Menu
1-99 - $2.19
100-999 - $1.98
1000 - $1.46
Can't Use PayPal?....email order
![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() |
![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() | CATEGORY 6A SHIELDED PLUG For 28AWG Stranded Conductors ONLY Accepts Conductor OD from .030"-.034" Maximum Jacket OD of .260" |
Click in Box for PayPal Drop Down Menu
1-99 - $2.09
100-999 - $1.84
1000 - $.75
Can't Use PayPal?....email order
![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() |
![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() | CATEGORY 6A SHIELDED PLUG For 23AWG and 24AWG Solid or Stranded Conductors Accepts Conductor OD from .037"-.042" Maximum Jacket OD of .310" |
Click in Box for PayPal Drop Down Menu
1-99 - $2.39
100-999 - $2.16
1000 - $1.64
Can't Use PayPal?....email order
![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() |
![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() | CATEGORY 6A SHIELDED PLUG For 23AWG and 24AWG Solid or Stranded Conductors Accepts Conductor OD from .037"-.042" Maximum Jacket OD of .260" |
Click in Box for PayPal Drop Down Menu
1-99 - $1.99
100-999 - $1.64
1000 - $.75
Can't Use PayPal?....email order
![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() |
![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() | CATEGORY 6A SHIELDED PLUG For 23AWG and 24AWG Solid or Stranded Conductors Accepts Conductor OD from .044"-.048" Maximum Jacket OD of .310" |
Click in Box for PayPal Drop Down Menu
1-99 - $2.39
100-999 - $2.16
1000 - $1.64
Can't Use PayPal?....email order
![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() |
![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() | CATEGORY 6A SHIELDED PLUG For 23AWG and 24AWG Solid or Stranded Conductors Accepts Conductor OD from .048"-.0525" Maximum Jacket OD of .310" |
Click in Box for PayPal Drop Down Menu
1-99 - $2.39
100-999 - $2.16
1000 - $1.64
Can't Use PayPal?....email order
![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() |
The RJ-45 Is A Highly Engineered Interconnection System
CAVEAT EMPTOR.....Let The Buyer Beware
SUB-STANDARD, NON-COMPLIANT and COUNTERFEIT RJ45's coming in from the Far East
KNOW THE STANDARDS - KNOW THE SPECS - INSIST ON COMPLIANCE - KNOW YOUR SUPPLIERS
