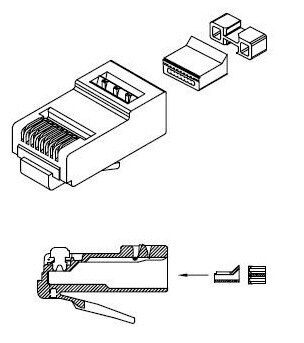

111-08080095LA4

Description

111-08080095LA4 Product Features

* Incorporates a DUAL PATENTED CONDUCTIVE NEXT Reduction System. In addition to providing PRECISE CONDUCTOR ALIGNMENT, the Composite Carbon/Graphite Fiber Conductor Load Bar GREATLY REDUCES NEXT and RETURN LOSS by ABSORBING REFLECTIONS and CHANNELING IT AWAY FROM THE CONDUCTORS. Using recommended termination procedures and equipment, ANSI/TIA 568.2-DCategory 6A performance levels are achievable with good workmanship and certified cables.
* Utilizes standard 8 across contact design that provides increased isolation and spatial dispersion within the plug to minimize crosstalk and allow for up to a .037″ to .042″ MAXIMUM INSULATED CONDUCTOR OD.
* Plug accepts both SOLID or STRANDED conductors
* Made in USA

111-08080095LA4 Specifications

Performance: Meets or Exceeds ANSI/TIA 568.2-D – ANSI/TIA 1096 (Formerly FCC Part 68) – ANSI/TIA 968-A – CENELEC EN 50173 – IEC 60603 – ISO-8877 – ISO/IEC 11801
Contact Material: Phosphor Bronze – .012″ thick
Contact Plating: Minimum 50 Micro-Inch Pure Gold – Selective 24 Carat Hard Gold Plate in contact area over 100 Micro-Inch minimum Nickel Plate. Exceeds TIA-1096 specifications (formerly FCC Part 68)
Plug Material: Polycarbonate
Plug Tolerances and Dimensions: Meets TIA-1096 specifications (formerly FCC Part 68)
UL Recognized: UL File #E188111 – UL 1863 (1000v)
Flame Autoextinguish: 94V-0
Operating Temperature: -40º C to +85º C
Insertion/Extraction Life: 1000 Minimum Cycles
Contact Resistance: 10 Milli-Ohms maximum
Current/Voltage: 30 VAC/57 VDC at 1.5 Amps
Compliance: RoHS Compliant
PoE: Meets requirements of 15W PoE (IEEE 802.3af), 30W PoE+ (IEEE 802.3at), 60W PoE++ (IEEE 802.3bt Type 3) and 100W PoE++ (IEEE 802.3bt Type 4)

COMPLEMENTARY PRODUCTS TO “DO THE JOB RIGHT”
900005/900216	TERMINATION TOOL Professional Grade Controlled Ratchet Style Insures Proper Blade Setting Depth 1,000,000 Cycles Minimum DO NOT TAKE THIS STEP FOR GRANTED Cable assemblies built using inadequate or poor quality tools and dies….. worn out tooling….. or mismatched tooling, WILL HAVE A MAJOR IMPACT ON THE PERFORMANCE OF THE CABLE ASSEMBLY. 111-08080095LA4 Termination Instructions	900005/900216 Price Per Unit $435.00 USD
B00046L	SNAGLESS STRAIN RELIEF BOOT OPTIONS CLEAR PLASTIC SLIM-LINE SNAGLESS BOOT Boot “Locks” into Plug – 360º Honeycomb Design Provides Bend Radius Strain Relief – Clear Plastic eliminates color “mismatch” between cable and boot. Accepts up to 6.7MM Jacket OD (.264″)	B00046L 1-99 $0.39 USD100-999 $0.30 USD1000+ $0.19 USD
3M™ EPS-300	3M™ HEAT SHRINK TUBING 1/2 Inch Diameter Adhesive-Lined, 3:1, Flexible, Polyolefin “Lock” Everything in Place Sold in 1 1/2 Inch Lengths	3M EPS-300 Heat Shrink Price Per Piece $0.43 USD
